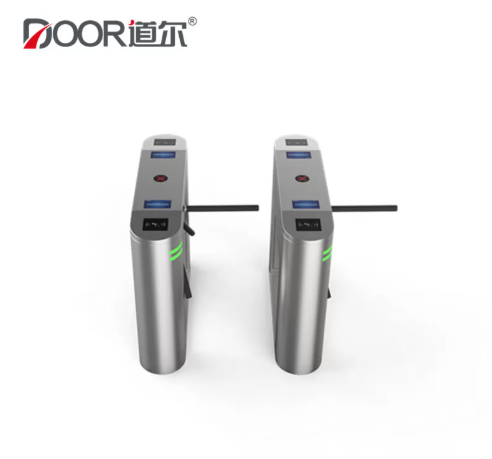

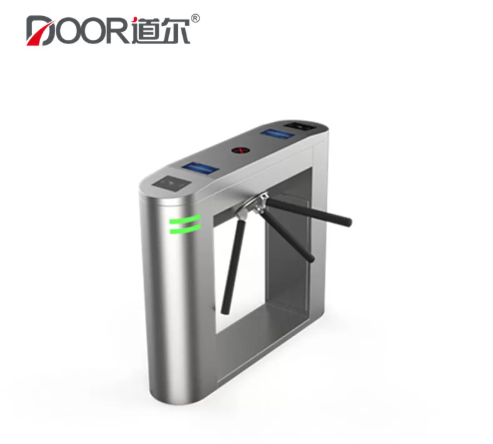

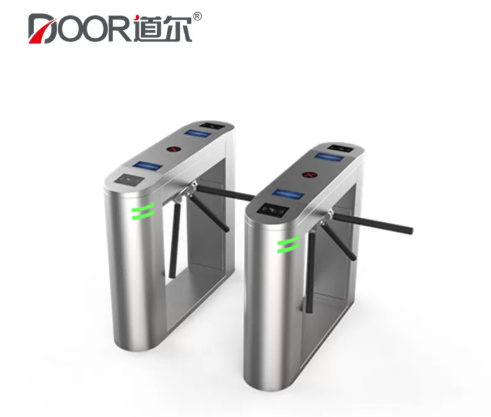

304 Stainless Steel Tripod Turnstile Gate with Face Recognition

Основная информация

Place of Origin:	China
Фирменное наименование:	DOOR or OEM
Сертификация:	CE / IS09001
Model Number:	WD.TD.6380X-EN

Minimum Order Quantity:	1 Unit
Цена:	negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Лучшая цена Контакт

Material:	304 Stainless Steel	Turnstile Material:	SUS304 Stainless
Communication Interface:	RS232	Swing arm available:	Acrylics Or Tempered Glass
Opening Signal Input::	Dry Contact	Working environment:	-15℃-60℃
Pass speed:	20 personal/min	Support System:	Face Recognition,ic/id Card,fingerprint
Passage Width:	600mm (MAX)	IP Rating:	IP55
Mean Cycles Between Failure:	20 million times	Voltage:	AC110V/AC220V±10% 50-60Hz
Method of position:	Motor Driving	Mtbf:	5 Million Times
Size:	1200x280x1000m	Access Means::	IC Card; Face Recognition
Выделить:	304 stainless steel tripod turnstile gate , face recognition turnstile gate , stainless steel turnstile with warranty

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage

Product Specifications

Attribute	Value
Material	304 Stainless Steel
Turnstile Material	SUS304 Stainless
Communication Interface	RS232
Swing arm available	Acrylics Or Tempered Glass
Opening Signal Input	Dry Contact
Working environment	-15℃-60℃
Pass speed	20 personal/min
Support System	Face Recognition, IC/ID Card, Fingerprint
Passage Width	600mm (MAX)
IP Rating	IP55
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Method of position	Motor Driving
MTBF	5 Million Times
Size	1200x280x1000mm
Access Means	IC Card; Face Recognition

Structural Integrity

Armor-Graded SUS304 | Brushed Finish Anti-Vandalism
Reinforced Body: 2.0mm Top Cover + 1.5mm Full-Wrap Steel Shell
Heavy-Duty Tripod Arm: Ø32mm Stainless Steel Tube
Dimensions: 420(L)×330(W)×980(H)mm (Compact Footprint)

Performance Engineering

HyperFlow Passage: 550mm Clear Width | 20+ Persons/Min (30% Faster Than Industry Avg.)
Lightning Access: 1s Opening Response | 5ms Motor Activation
Extreme Environment Ready: -20℃~60℃ Operation | IP55 Shield (Dust/Jet Water Resistant)
Military Durability: 5 Million MCBF | 20-Year Corrosion Resistance

Key Features

Seamless Third-Party Integration: Compatible with industry-standard access control devices
Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release
High-Speed Detection: 8 military-grade infrared sensors prevent tailgating and reverse passage
Enhanced Safety: Multi-layer anti-pinch design and optional widened lane access
Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces

Note: Recognition systems not included; product provides standardized connection interfaces only

Applications

Widely used for official or corporate buildings, university lab access points, industrial buildings, and hospital radiology departments.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
